The TCT page.

The

Tiger Coloured Trike.

Here we are at John O' Groats.

Phil, Nicky and myself go touring Scotland.

It hasn't always been tiger coloured. When I built it in around 1990 it was sort of orange coloured. Then it became green and black, then black, then blue, then blue with multi coloured spiders, and finally tiger coloured ( around 1998 ). The original plan was a quick five week build, then sell it on. Oh dear, that didn't go to plan now did it. In 2003 the gearbox failed - this prompted me to do a bit of cosmetic work whilst I was at it. Take a nose HERE, for the full details.

On the Sparkhayes campsite at Porlock - a site I've been using since the late 1970s

My trailer, which was bought for pulling behind my Gold Wing, took on a few tiger stripes in order to match the trike. Funnily enough it also ended up colour matched with multi coloured spiders too - in fact it's been painted to match a few vehicles of mine, but for now it stays paired up with the TCT.

Being cut in half at Pete's workshop.

Oh dear - it's now 2009 and the TCT gets cut in half. Why ? When I built it the engine was sloping back too much. Why I never changed this back in 2003 when I did the gearbox is beyond me. Much cussing and welding later, and the TCT rolled back out of the workshop with the engine sitting almost level. The footrests and mudguards had to be changed to suit, and a pair of new seats were also fitted.

Sitting above Porlock.

Just for good measure I powder coated the wheels and fitted new tyres. This is how the TCT looks as of 2009 - seen here down at Porlock, a place I seem to spend quite a few weekends at.

The TCT is slowly changing colour - the green patina of living plants is taking over.

Well, we are now over halfway through 2012 and the TCT is sat under the kitchen window currently on SORN. I did put it on the road for a year when the wheel spindle in DOT failed in September 2010, but that was more out of necessity than anything else. I just can't get my foot up onto the clutch quick enough, and should I have to brake suddenly, I don't think I could react in time. Sadly, the TCT has grown a green coating of algae and mould - also due to not being used, the oil seal behind the flywheel has dried out and started leaking. Looks like my first job when ( if ) they sort this leg out will be to take the engine out and change that oil seal

2013

April 2013 - following my hip replacement I feel I now have enough movement in the left leg to consider using the TCT again. The first thing was to give it a good scrubbing to get all the moss and algae off it. MOT followed, and in true Sod's Law fashion the horn didn't work. Luckily the MOT tester "lent" me one for the test, and as soon as I got home I fitted one that worked. I did have a bit of a roadside breakdown - a slug of silicone sealant got wedged in the fuel line ( strangely enough the same thing happened back in February 2000 ). As I thought, the engine had to come out and a new crank oil seal fitted.

You take the engine out - you put the engine in - you take the engine out . . . . .like some kind of VW based Hokey Cokey.

The TCT's next trick was turning the lights off every two or three minutes - not much fun if you are riding at night. This turned out to be a faulty 16 amp trip unit - there again, these trips were not new when I fitted 'em in the first place.

Whilst fitting the crank oil seal, one of the rusty old pushrod tubes got dented and within a few weeks it started leaking. This meant taking the engine out again and fitting new pushrod tubes . . nice stainless steel pushrod tubes. Why didn't I fit stainless steel ones in the first place - it would have saved a lot of bother.

The TCT was called into service to tow the "Dog Kennel" again this year - which it did with no problem. Come to think of it, most of the little niggles I've had with the TCT this year are a result of it being left standing.

September 2014

The TCT has had a bit more use this year. It's been down to Porlock twice and over to Belgium once, and it's only September now. Mechanically it hasn't given much trouble. I did have a slight air leak on the left hand bank of cylinders - this was due to the rubber inlet manifold connector being perished. Nothing that a few quid and an hour's work couldn't fix.

Down at Sparkhayes campsite. The TCT, the trailer and the Vango inflateable tent.

September 2015

The TCT has been over to Belgium once again. The spare front wheel which I had powder coated back in 2009 finally got fitted. Apart from some new stainless steel rocker covers and a new fuel gauge, the TCT hasn't had much money spent on it.

The TCT as it stands in 2015

September 2016

Once again the TCT headed over to Belgium - and ran faultlessly there and back. Seen below, towing my new Raclet Solena trailer tent . . which the TCT towed without any problem.

Waiting for the ferry to come back home.

I treated the TCT to a volt meter . . .cost less than two quid from good old eBay.

Let's keep an eye on the battery.

August 2017

The TCT has been running without any problems - once again it towed the trailer tent over to Belgium without any hassle. . . seen below lurking in Poperinge.

Riding along in Belgium

August 2018

Yet again the TCT performed faultlessly - so to show my appreciation I treated it to some new stainless steel handlebars and a new rev counter.

It's not like it's a high revving engine, but I do like to see what's going on back there.

October 2019

It had to happen sooner or later - the TCT let me down. I was heading up to Yorkshire, but only got 18 miles up the A38 when the engine died. To cut a long story short, I got recovered back home by the AA - found it was the coil which had in turn caused the electronic ignition to fail. I swapped for a dizzy with a set of points and did my Yorkshire run three days later with no real issues. The carburettor also gave me a bit of bother later in the year, and to be honest, that still ain't set up the way I'd like it.

A dead TCT waiting for the AA to arrive.

Let's wait here until the recovery wagon arrives shall we ?

August 2020

Seeing as we were not allowed to be going out and about for a few months, I decided to get on with a job I detest. Namely, painting the trike. It didn't take long to remove the bodywork and all the other bits and bobs - in fact, I don't mind doing that. Next little job was drawing the outlines for my tiger stripes. I'm no good at all when it comes to drawing. I cheated by doing the work on the computer, then drawing a grid on the item to be marked out, then using the grid as a reference I marked out the various bits of bodywork.

All the bits are now removed. A few lines are marked out.

Just like painting by numbers . . . . with only two numbers

In order to get an idea of how to do the main bodywork, I resorted to flying my drone above the TCT ( well, technically it ain't tiger coloured yet ), then doing the grid trick to get an idea of where the stripes should go. I also found that using low tack masking tape and a scalpel, I could make my work a lot easier . . . . but I still hate paining. Anyway, it's all done now . . . . and I've only been out twice on it so far this year.

A view from above With added stripes

Here we are at the usual lay-by on the A515

December 2021

Seeing as the TCT got treated to some shiny new paint last year, I decided to give the trailer the same treatment. The next little thing was getting the seat slightly altered and recovered. I wanted to be about an inch or two higher and about three inches further forward. I dropped the seat in down at Ashwood Marina and explained what I would like - the result didn't disappoint. I gave the seat a thorough testing by riding down to Cornwall on the Monday, then coming back home the scenic way on the Tuesday. This was also a good excuse to test both the trailer and the new inflatable tent I'd bought. Once again I now have a tent I can get in and out of and can put up without any help.

One new seat - colour matched too. The trailer gets the same treatment.

Of course the TCT just had to visit Porlock - it's a tradition. The only thing that spoiled what was a good holiday was the panic buying "petrol wankers". I had intended to do a bit of touring around Devon and Cornwall, but it wasn't worth the risk of not being able to make it back to Porlock - or even home, for that matter. Come to think of it, I didn't take the Bantam down to the Ace Café for the same reason.

Once again we are at the top of Porlock Hill The usual base camp - Sparkhayes camp site.

November 2022

Only a few minor niggles with the TCT this year. I had a throttle cable snap, but being of the "old school" I carry spare cables. The next problem was the ignition switch refusing to turn - a new switch sorted that out. When I fitted the new ignition switch I failed to notice I'd trapped the wire which feeds the light switch. I only noticed this when I went to turn the lights on and nothing happened. Trouble was, it was getting dark and I was 225 miles from home on holiday down in Cornwall. I managed to reach the place I was staying just as it was almost too dark to see. Once again, it was a quick fix once I'd found the trapped wire.

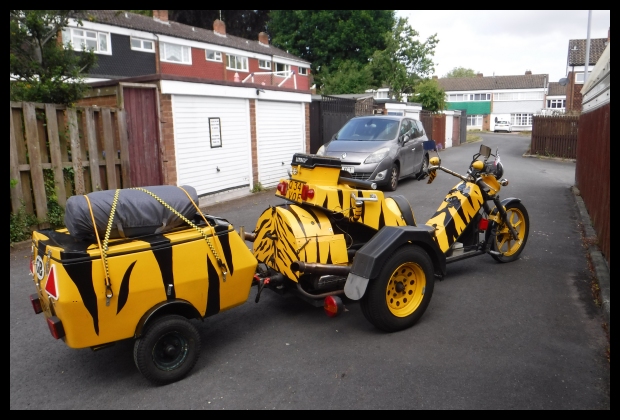

All loaded up and ready to go.

November 2023

I suppose the only thing I had to do to the TCT this year was fit a front brake light switch. It seems the MOT requirements had changed, and any control lever / pedal which operated the brakes needs to have a brake light switch. I soon modified the front brake lever to take a Royal Enfield switch. Apart from a good long run in September, the TCT hasn't really been out all that much this year.

November 2024

The TCT has only been out 7 times this year - and the first one wasn't until May. I did manage a 443 mile run in August, and another run of 261 miles in September. Reliability wise, the rear shock absorber bushes needed changing, and the carb isn't quite set up right. To be fair, the carb has been a minor niggle for a few years now, but it ain't *that* much of a problem. I suppose I'll get around to sorting it out one day.
